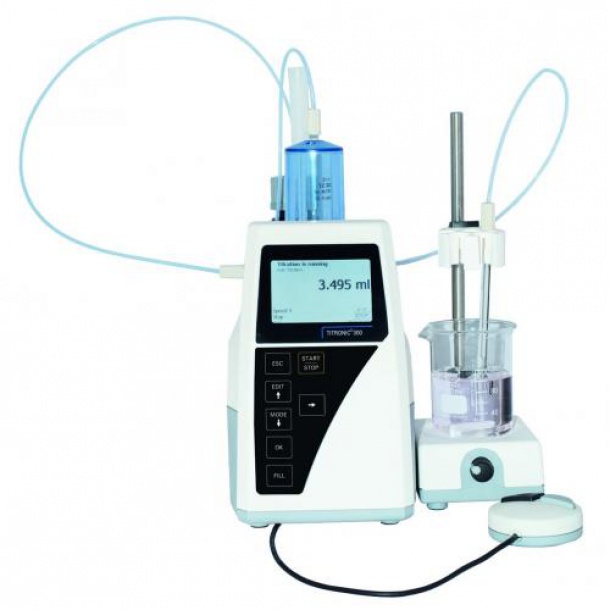

Motor-driven piston burette Titronic® 300
Motor-driven piston burette with 20 or 50ml dosing unit. For manual titrations and highly precise dosing tasks. The TITRONIC® 300 can be completely controlled from a PC via the USB- or RS-232-interface. Up to 16 burettes can be connected to one another via the RS232 interface according to the daisy chain principle.

T 300/20 M1: Basic unit without magnetic stirrer with ready to use assembled 20 ml dosing unit TZ 3130 with hoses, fittings and titration tip, controller TZ 3880, titration clamp Z 305, stand rod TZ 1748 and power supply 100-240 V
T 300/50 M1: as T 300/20 M1, only with ready to use assembled 50 ml dosing unit TZ 3160
T 300/20 M2: as T 300/20 M1, additionally with magnetic stirrer TM 50
T 300/50 M2: as T 300/20 M2, only with ready to use assembled 50 ml dosing unit TZ 3160
Specifications
Interfaces: USB A and B, 2x RS 232
Stirrer connection: TM 50 power supply directly through piston burette
Keyboard connection: The unit is operated using the keys on the device itself, the controller TZ 3880 and optional PC-keyboard (USB)
Display:
Volume indicator: graphics-capable TFT display
000.005 to 9999.999 ml
Display resolution: 0.005
Dosing speed: max. 100ml/min (with 50 ml unit)
Fill time: 30secs. to 99secs. adjustable (time depends on cylinder volume)
Dosing units: 20ml or 50ml dosing unit, interchangeable
Burette resolution: 8000
Dispensing accuracy: 0.15% system measurement deviation, 0.05% accidental measurement deviation determined in accordance with EN ISO 8665, Part 3
Supply requirements: 230V, 50/60Hz
Conformity: ISO 8665, Part 6
CE mark: EMC: 2004/108/EG; safety EG- Directive 2006/95

Type T 300/20 M1
Burette attachment 20 ml
