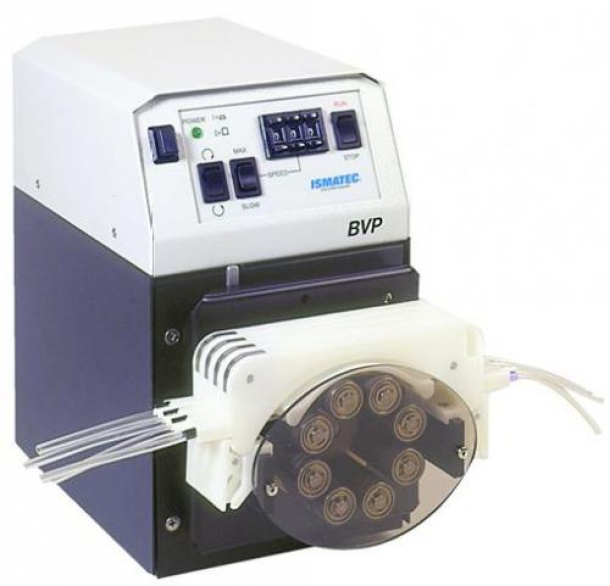

Peristaltic pump drives, BVP-Standard / BVP-Process
Can be combined with over 20 pump-heads for flow rates of 0.01 to 3700ml/min (depending on pump-head).
For the continuous pumping of liquids and suspensions with up to 60 % solids content according to capacity or time. Analogue interface for Start/Stop, rotation direction, autostart. LED display on BVP Process. Stainless steel housing, dust-tight and water-proof. Dimensions (W X D x H): 155 x 220 x 260mm (without pump-head). Power supply: 230V/50Hz, 115V/60Hz

Specifications: BVP Standard
-speed 3.8 to 240 rpm
-speed setting: 1-99.9 %, resolution 0.1%
-protection rating: IP30
-power supply: 100 - 230 VAC / 50 - 60Hz
-weight: 5.7kg (without pump head)

Specifications: BVP Process
-speed 1 to 240 rpm
-speed setting: rpm, resolution: 0.1 rpm
-LED display
-protection rating: IP65
-power supply: 100 - 230 VAC / 50 - 60Hz (autom. switching)
-weight: 6.9 kg (without pump head)

Type BVP-Standard
Flow rate 0.003 - 3700 ml / min.
