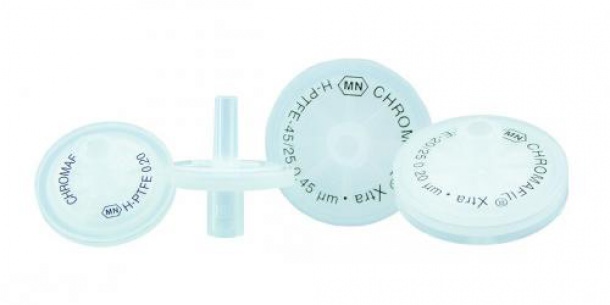

Syringe filter CHROMAFIL®, Hydrophilized Polytetrafluoroethylene (H-PTFE)
CHROMAFIL® syringe filters are used for filtration of suspended matter from liquid samples. HPLC-Certification available on the internet
Polypropylene housing
Better solvent stability compared to acrylate and polystyrene filters
Shells ultrasonically sealed, not glued
No extractable components from glues
Filtration in both directions possible, the liquid cannot bypass the membranes
Luer lock on side of entry
Safe connection on the ''high pressure'' side
Luer exit
Standard luer for 3mm and 25mm filters, minispike luer with low dead volume and small OD for 15mm filters
Deflector
The stream of liquid is broken and distributed, and does not directly hit the membrane: this prevents rupture of the membrane
Star-shaped distribution device
The liquid is evenly distributed to the whole membrane surface: this results in a better utilisation of the total area; the filter is not rapidly clogged up; high flow efficiency
Colour coded
Filters with 0.2µm pores have a yellow upper housing, for filters with 0.45µm pores this is colourless; the different membrane types are distinguished by different colours
Low dead volume
~80µl for 25mm, 12µl for 15mm, 5µl for 3mm.

Specifications
The membrane housing consists of polypropylene (PP). This material is very resistant towards most solvents and has a very low extractable substances content. Thus it can be used with almost all solvents, acids and bases (see table). The especially thick rim of the housing is ideal for use with laboratory robots (e.g. Benchmateä). Filter inlet and filter outlet can be fitted to the CHROMABOND® columns for selective sample preparation with the aid of a special adaptor. All filters can be autoclaved at 121°C and 1.1bar for 30min.

ChromafiläXtra:
Labelled for method validation and certification. Colour-free plain polypropylene housing. Imprint for direct identification of the membrane type, diameter and pore size.
Hydrophilized polytetrafluoroethylene syringe filters labelled for method validation and certification
-Hydrophobic membrane with additional hydrophilic characteristics
-For polar and nonpolar solutions
-Resistant against all kinds of solvents as well as acids and bases

Type non sterile
Filter diam. 25 mm
Pore size 0.200000 µm
Housing PP-colourless/labelled
