stříkačkové filtry CHROMAFIL®, celulóza mixed ester (MV)
Syringe filter CHROMAFIL®, Cellulose mixed ester (MV), Type non sterile , Filter diam. 25 mm, Pore size 0.450000 µm, Housing PP-colourless/labelled*
Výrobce
Zařazeno v kategoriích
Stříkačkové filtry
Popis

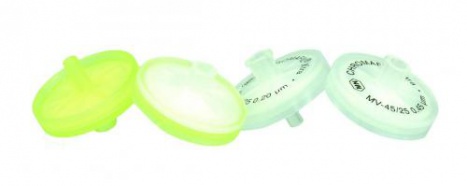

Syringe filter CHROMAFIL®, Cellulose mixed ester (MV)
CHROMAFIL® syringe filters are used for filtration of suspended matter from liquid samples. HPLC-Certification available on the internet
Polypropylene housing
Better solvent stability compared to acrylate and polystyrene filters
Shells ultrasonically sealed, not glued
No extractable components from glues
Filtration in both directions possible, the liquid cannot bypass the membranes
Luer lock on side of entry
Safe connection on the ''high pressure'' side
Luer exit
Standard luer for 3mm and 25mm filters, minispike luer with low dead volume and small OD for 15mm filters
Deflector
The stream of liquid is broken and distributed, and does not directly hit the membrane: this prevents rupture of the membrane
Star-shaped distribution device
The liquid is evenly distributed to the whole membrane surface: this results in a better utilisation of the total area; the filter is not rapidly clogged up; high flow efficiency
Colour coded
Filters with 0.2µm pores have a yellow upper housing, for filters with 0.45µm pores this is colourless; the different membrane types are distinguished by different colours
Low dead volume
~80µl for 25mm, 12µl for 15mm, 5µl for 3mm.
Specifications
The membrane housing consists of polypropylene (PP). This material is very resistant towards most solvents and has a very low extractable substances content. Thus it can be used with almost all solvents, acids and bases (see table). The especially thick rim of the housing is ideal for use with laboratory robots (e.g. Benchmateä). Filter inlet and filter outlet can be fitted to the CHROMABOND® columns for selective sample preparation with the aid of a special adaptor. All filters can be autoclaved at 121°C and 1.1bar for 30min.
ChromafiläXtra:
Labelled for method validation and certification. Colour-free plain polypropylene housing. Imprint for direct identification of the membrane type, diameter and pore size.
Hydrophilic membrane. This membrane is recommended for all filtrations of aqueous or polar organic samples.
Type non sterile
Filter diam. 25 mm
Pore size 0.450000 µm
Housing PP-colourless/labelled*
CHROMAFIL® syringe filters are used for filtration of suspended matter from liquid samples. HPLC-Certification available on the internet
Polypropylene housing
Better solvent stability compared to acrylate and polystyrene filters
Shells ultrasonically sealed, not glued
No extractable components from glues
Filtration in both directions possible, the liquid cannot bypass the membranes
Luer lock on side of entry
Safe connection on the ''high pressure'' side
Luer exit
Standard luer for 3mm and 25mm filters, minispike luer with low dead volume and small OD for 15mm filters
Deflector
The stream of liquid is broken and distributed, and does not directly hit the membrane: this prevents rupture of the membrane
Star-shaped distribution device
The liquid is evenly distributed to the whole membrane surface: this results in a better utilisation of the total area; the filter is not rapidly clogged up; high flow efficiency
Colour coded
Filters with 0.2µm pores have a yellow upper housing, for filters with 0.45µm pores this is colourless; the different membrane types are distinguished by different colours
Low dead volume
~80µl for 25mm, 12µl for 15mm, 5µl for 3mm.
Specifications
The membrane housing consists of polypropylene (PP). This material is very resistant towards most solvents and has a very low extractable substances content. Thus it can be used with almost all solvents, acids and bases (see table). The especially thick rim of the housing is ideal for use with laboratory robots (e.g. Benchmateä). Filter inlet and filter outlet can be fitted to the CHROMABOND® columns for selective sample preparation with the aid of a special adaptor. All filters can be autoclaved at 121°C and 1.1bar for 30min.
ChromafiläXtra:
Labelled for method validation and certification. Colour-free plain polypropylene housing. Imprint for direct identification of the membrane type, diameter and pore size.
Hydrophilic membrane. This membrane is recommended for all filtrations of aqueous or polar organic samples.
Type non sterile
Filter diam. 25 mm
Pore size 0.450000 µm
Housing PP-colourless/labelled*
Varianty produktu
Pro zobrazení cen na míru se přihlašte do klientské sekce.
Kód produktu
Kód produktu
Kód BDL 9049033 Kód výrobce 729004.4
Skladovost
skladem 2 kusy
Za 5 pracovních dní u vás
Cena bez DPH
10 931 Kč
Pro registrované
10 384 Kč
10 384 Kč
Kód BDL 9049030 Kód výrobce
729006
Syringe filter CHROMAFIL®, Cellulose mixed ester (MV), Type non sterile , Filter diam. 25 mm, Pore size 0.200000 µm, Housing PP-yellow/yellow
729006
Kód BDL 4003406 Kód výrobce
729204.4
Syringe filter CHROMAFIL®, Cellulose mixed ester (MV), Type non sterile , Filter diam. 25 mm, Pore size 0.450000 µm, Housing PP-colourless/labelled*
729204.4
Kód BDL 9049032 Kód výrobce
729004
Syringe filter CHROMAFIL®, Cellulose mixed ester (MV), Type non sterile , Filter diam. 25 mm, Pore size 0.450000 µm, Housing PP-colourless/yellow
729004
Kód BDL 4003408
Syringe filter CHROMAFIL®, Cellulose mixed ester (MV), Type non sterile , Filter diam. 25 mm, Pore size 0.20 µm, Housing PP-colourless/labelled*
Kód BDL 4003405 Kód výrobce
729204
Syringe filter CHROMAFIL®, Cellulose mixed ester (MV), Type non sterile , Filter diam. 25 mm, Pore size 0.450000 µm, Housing PP-colourless/labelled*
729204
Kód BDL 9049031
Syringe filter CHROMAFIL®, Cellulose mixed ester (MV), Type non sterile , Filter diam. 25 mm, Pore size 0.20 µm, Housing PP-yellow/yellow
Kód BDL 4003407 Kód výrobce
729206
Syringe filter CHROMAFIL®, Cellulose mixed ester (MV), Type non sterile , Filter diam. 25 mm, Pore size 0.200000 µm, Housing PP-colourless/labelled*
729206
