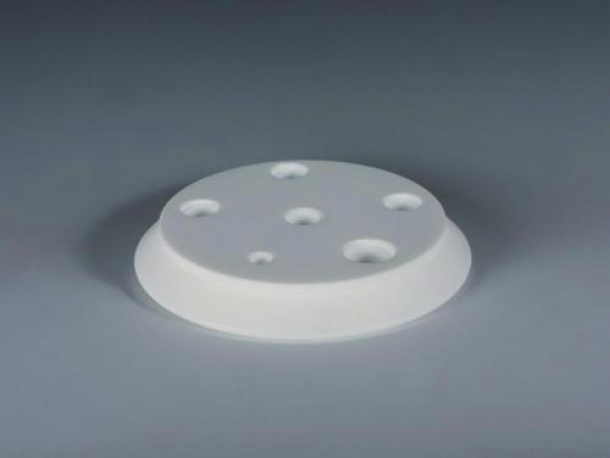

víko pro skleněný reaktor, PTFE
Reactor lids for Glass reactors, PTFE, Type B 150-02 , Flange diam. 100 mm, Height 31 mm, DN 60
Výrobce
Zařazeno v kategoriích
Reakční nádoby s vývodem
Popis
Reactor lids for Glass reactors, PTFE
Suitable for glass reactors with SCHOTT flat flange DN 60, DN 100 and DN 150. All Reactor Lids dispose of a centric screw-in thread NPT for connection of a stirrer bearing. The lateral necks, that even dispose of NPT screw-in threads, are arranged round the centric connector. The angles of lateral necks are made for an insertion of probes and tubes aside the centre in order to avoid collisions with the stirrer shaft. With screw in threads for connection of transition fittings and a center neck NPT 1/2''. Temperature resistance from -200°C to +250°C, universal chemical resistance, FDA conformity, further combinations on request.
B 150-02: NPT 1/4'' connection directly to the shaft, NPT 1/2'' connection aside the shaft, NPT 1/2'' connection aside the shaft
B 150-04: NPT 1/2'' connection aside the shaft, NPT 1/2'' connection aside the shaft, NPT 1/2'' connection aside the shaft
B 150-12: NPT 1/2'' connection aside the shaft, NPT 1/2'' connection directly to the shaft, NPT 1/2'' connection directly to the shaft
B 150-14: NPT 1/2'' connection directly to the shaft, NPT 1/2'' connection aside the shaft, NPT 1/2'' connection directly to the shaft, NPT 3/4'' connection aside the shaft, NPT 1/4'' vertical connector
B 150-16: NPT 1/2'' connection directly to the shaft, NPT 1/2'' connection aside the shaft, NPT 1/2'' connection directly to the shaft, NPT 1/4'' connection aside the shaft, NPT 1/4'' vertical connector
B 150-22: NPT 1/2'' connection directly to the shaft, NPT 1/2'' connection aside the shaft, NPT 1/2'' connection directly to the shaft, NPT 1/4'' connection aside the shaft, NPT 1/4'' vertical connector
B 150-24: NPT 1/2'' connection directly to the shaft, NPT 1/2'' connection aside the shaft, NPT 1/2'' connection directly to the shaft, NPT 3/4'' connection aside the shaft, NPT 1/4'' vertical connector
B 150-26: NPT 1/2'' connection directly to the shaft, NPT 1/2'' connection aside the shaft, NPT 1'' connection directly to the shaft, NPT 1/4'' connection aside the shaft, NPT 1/4'' vertical connector
Type B 150-02
Flange diam. 100 mm
Height 31 mm
DN 60
Suitable for glass reactors with SCHOTT flat flange DN 60, DN 100 and DN 150. All Reactor Lids dispose of a centric screw-in thread NPT for connection of a stirrer bearing. The lateral necks, that even dispose of NPT screw-in threads, are arranged round the centric connector. The angles of lateral necks are made for an insertion of probes and tubes aside the centre in order to avoid collisions with the stirrer shaft. With screw in threads for connection of transition fittings and a center neck NPT 1/2''. Temperature resistance from -200°C to +250°C, universal chemical resistance, FDA conformity, further combinations on request.
B 150-02: NPT 1/4'' connection directly to the shaft, NPT 1/2'' connection aside the shaft, NPT 1/2'' connection aside the shaft
B 150-04: NPT 1/2'' connection aside the shaft, NPT 1/2'' connection aside the shaft, NPT 1/2'' connection aside the shaft
B 150-12: NPT 1/2'' connection aside the shaft, NPT 1/2'' connection directly to the shaft, NPT 1/2'' connection directly to the shaft
B 150-14: NPT 1/2'' connection directly to the shaft, NPT 1/2'' connection aside the shaft, NPT 1/2'' connection directly to the shaft, NPT 3/4'' connection aside the shaft, NPT 1/4'' vertical connector
B 150-16: NPT 1/2'' connection directly to the shaft, NPT 1/2'' connection aside the shaft, NPT 1/2'' connection directly to the shaft, NPT 1/4'' connection aside the shaft, NPT 1/4'' vertical connector
B 150-22: NPT 1/2'' connection directly to the shaft, NPT 1/2'' connection aside the shaft, NPT 1/2'' connection directly to the shaft, NPT 1/4'' connection aside the shaft, NPT 1/4'' vertical connector
B 150-24: NPT 1/2'' connection directly to the shaft, NPT 1/2'' connection aside the shaft, NPT 1/2'' connection directly to the shaft, NPT 3/4'' connection aside the shaft, NPT 1/4'' vertical connector
B 150-26: NPT 1/2'' connection directly to the shaft, NPT 1/2'' connection aside the shaft, NPT 1'' connection directly to the shaft, NPT 1/4'' connection aside the shaft, NPT 1/4'' vertical connector
Type B 150-02
Flange diam. 100 mm
Height 31 mm
DN 60
Varianty produktu
Pro zobrazení cen na míru se přihlašte do klientské sekce.
Kód produktu
Kód produktu
Kód BDL 6283008 Kód výrobce B 150-22
Kód BDL 6283005 Kód výrobce
B 150-12
Type B 150-12 , Flange diam. 138 mm, Height 31 mm, DN 100
B 150-12
Kód BDL 6283010 Kód výrobce
B 150-26
Type B 150-26 , Flange diam. 184 mm, Height 25 mm, DN 150
B 150-26
Kód BDL 6283007 Kód výrobce
B 150-16
Type B 150-16 , Flange diam. 138 mm, Height 31 mm, DN 100
B 150-16
Kód BDL 6283004 Kód výrobce
B 150-04
Type B 150-04 , Flange diam. 100 mm, Height 31 mm, DN 60
B 150-04
Kód BDL 6283009 Kód výrobce
B 150-24
Type B 150-24 , Flange diam. 184 mm, Height 25 mm, DN 150
B 150-24
Kód BDL 6283006 Kód výrobce
B 150-14
Type B 150-14 , Flange diam. 138 mm, Height 31 mm, DN 100
B 150-14
Kód BDL 6283003 Kód výrobce
B 150-02
Type B 150-02 , Flange diam. 100 mm, Height 31 mm, DN 60
B 150-02
