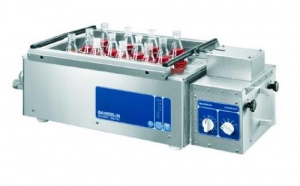

Ultrasonic Bath with Shaking Device SONOSHAKE
Consisting of:
Ultrasonic bath Sonorex Digitec DT 1028 F
-Especially for sonification of samples in laboratory flasks and for rapid degassing (DEGAS)
-Low-profile, ultrasonic bath with stainless steel tank, inner dimensions 500mm x 300mm x 65mm (L x W x D)
-Housing made of stainless steel, protected against spray, 535mm x 325mm x 205mm (L x W x H)
-Outlet: G½ ball valve
-Timer: 1, 2, 3, 4, 5, 10, 15, 30 min, or continuous
-Ultrasonic peak power 1280W
-Ultrasonic nominal power 320W
-Working frequency 35kHz, SweepTec®
-Current consumption 1.4A

Shaking device SA 1028
-Analogue setting of time (1 to 15 min, or continuous) and shaking frequency
-Reciprocating motion: settings in 4 steps possible of up to 200/min
-Constant amplitude of 20mm independent of loading
-Rack easy to remove - easy mounting of the laboratory clamps EK 10-250 (separately to order)
-Footprint approx. 410mm x 280mm (L x W)
-Holds 36 x 10ml, 36 x 25ml, 18 ´ 50ml, 12 x 100ml or 10 x 250ml flasks

-Bench space required for Sonoshake approx. 850mm x 360mm (L x W)

An existing SONOREX DIGITEC DT 1028 F ultrasonic bath can easily be retrofitted with the shaker attachment SA 1028.

Type SONOSHAKE
Capacity of the bath 9.500000 litres
Width of the interior 500 mm
Depth of the interior 300 mm
Height of the interior 65 mm
Ultrasonic power 1280 W
Ultrasonic nominal power 320 W
max. frequency 35 kHz
min. heating/cooling temperature °C
max. heating/cooling temperature °C
Width 535 mm
Depth 325 mm
Height 205 mm
Net weight 9.700000 kg
Heating power W
Protection class IP33
Drain ball valve Yes
Current draw 1.40 A
Internal dimensions (W x D x H) mm
