Conductivity monitoring, 3D
The conductivity meter 3D is battery driven to control the conductivity of pure and demineralized water. The scaled value can be controlled with three light-emitting diodes (LED) green, yellow and red.
The limited values are available in two performances: <1, <20, >20 µS/cm and <5, <20, >20 µS/cm, and two applications: straight (illustration 2) and angular (illustration 3).

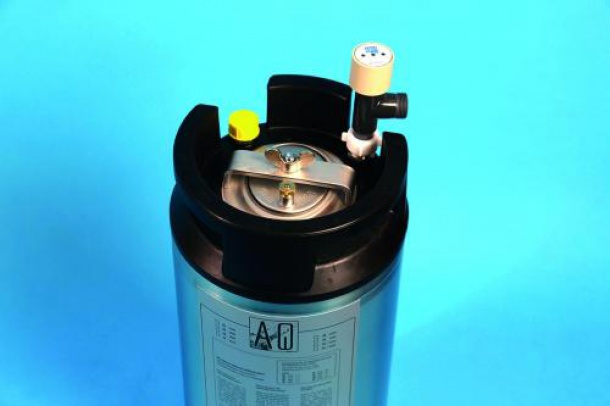

The unit consists of a plastic housing with a R ¾'' connection.

-profitabilty: battery-driven - longlasting duration
-individuality: no electrical connection necessary
-safety device: 3D conductivity meter - 3 light emitting diodes (LED)
-connectors: R ¾'' union nut

Measuring range 0,1 - 20 µS/cm
External dimensions (W x D x H) 55 x 40 x 110 mm
Weight 0.300000 kg
Type straight
Measuring range limit value <1/<20/>20
